Induction Heater of Super Audio Frequency Induction Heating Machine (100KW)

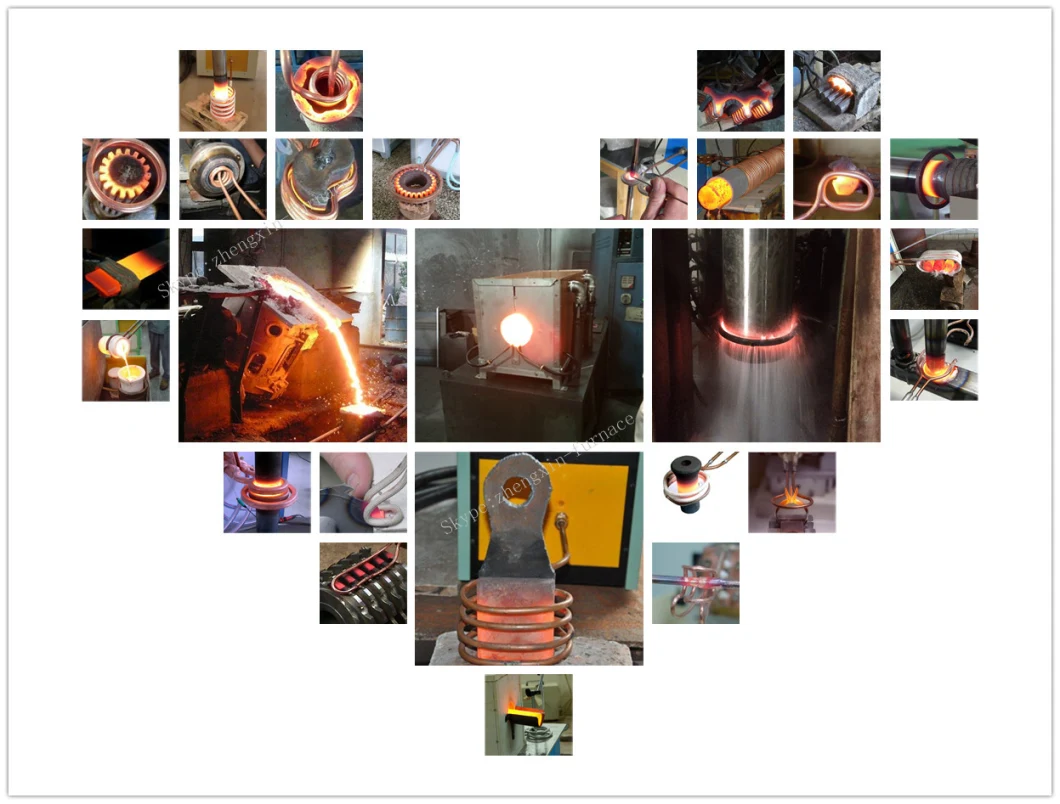

Application of Induction Heating Equipment:


A. Heating (hot forging, hot fitting and melting)
B. Heat Treatment (surface quench)
C. Welding (braze welding, silver soldering and brazing)
D. Annealing (tempering and modulation)

Major Features:
1. This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.

2. It has such feaures as high power, fast heating speed, high efficiency and easy operation.

3.  As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.

4. It has super small size, which can save the production space by 10 times.

5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.

6. The comprehensive full load design is available for 24-hour continuous operation.

Main technical parameters:

TypeZXS-100AB
The range of operating voltage340V-430V
Input power150A
Output power100KW
Fluctuating frequency20-50khz
Output current400-4000A
The flow rate of cooling water0.08-0.16Mpa 10L/Min
Water temperature protection point50ºC
SizeMain  : 820x695x1060mm
Transformer  : 865x420x750mm
WeightMain:   110KG
Transformer :80KG
