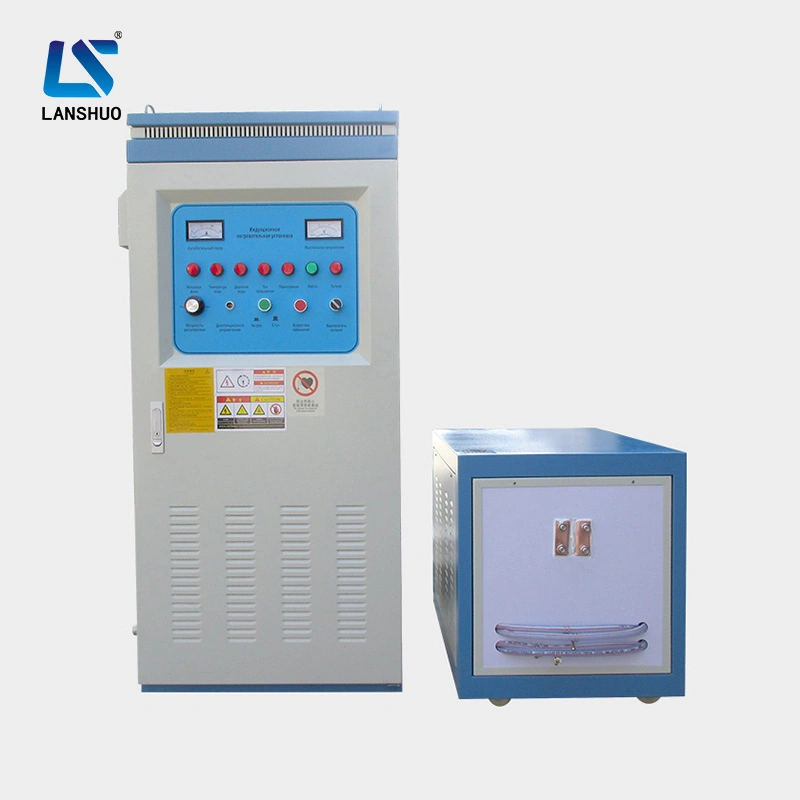

Induction heating machine photo:
Induction heating machine features:
1. Principle: electromagnetic induction heating.
2. IGBT module and Inverting technologies.
3. Higher reliability and lower maintenance cost.
4. 100% duty cycle, continuous working is allowed at maximum power output.
5. Display of heating power and heating current and oscillating frequency.
6. Simple to install. No need debug. Can be used after connecting through electricity and cooling water.
7. Application: induction hardening of shafts, gears, chain wheels, spline shafts, drill pipes, iron rods, steel pipes, machine tools surface and bodies, etc.
Induction heating machine technical parameters:
|Working voltage||3 phase 380V, 50/60HZ or customized|
|Max input current||180A|
|Max input power||120KW|
|Cooling water flow||≥ 0.2Mpa, ≥55L/min|
|Control part dimension(L*W*H)||600*480*1360mm|
|Transformer cabinet dimension(L*W*H)||800*500*580mm|
Induction heating machine whole set machine list item:
|1||LSW-120 induction heating machine||-||1 set|
|2||induction coil||-||1 pcs|
|3||foot switch||-||1 pcs|
|4||user manual||-||1 copy|

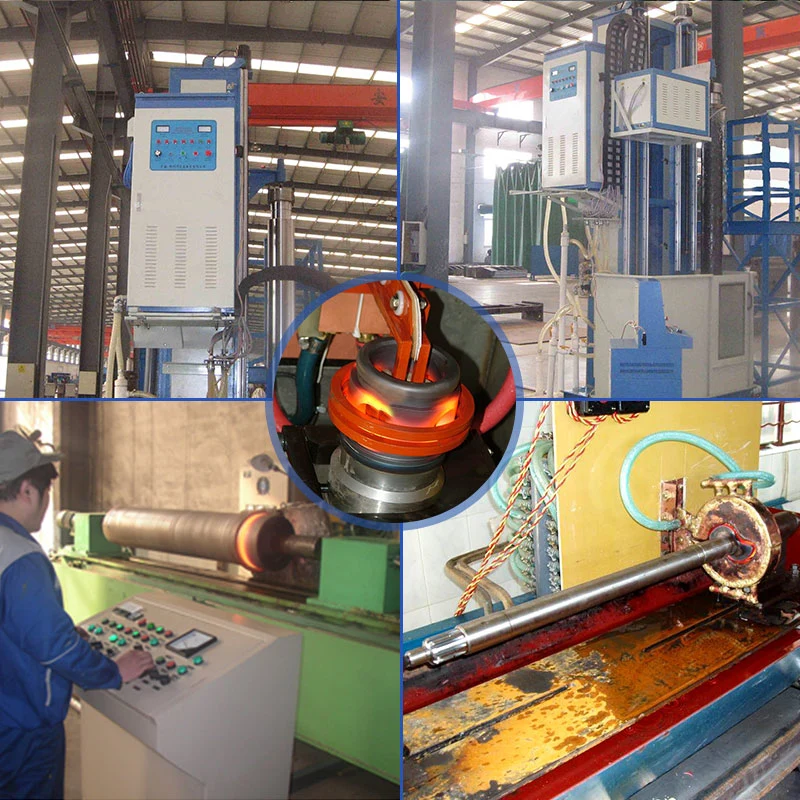

Induction heating machine application:
Induction heating machine packaging and delivery:
Packaging: Induction heating machine wrapped with plastic films and foam first, then put it into a standard export wooden case and fasten at last. (can be customized if needed.)
Delivery: Within 7 working days after prepayment received.
1. Zhengzhou Lanshuo Electronics Co., Ltd is located in Zhengzhou National High& New Technology and Industrial Development Zone.
2.15-year experience in the R&D, design, production of high frequency and medium frequency induction heating machines. Products have won great reputation among clients.
3. Leading products include IGBT medium frequency induction heating equipment, IGBT super audio induction heating equipment, CNC quenching machine tool, IGBT medium frequency induction melting furnace, KGPS medium frequency induction melting furnace, open type water cooling tower, closed water cooling tower, etc.
4. We have exported to UK, Austarlia, Pakistan, Egypt, Singapore, India, Vietnam, Mexico, Uganda, Ukraine, Serbia, Russia, Germany, Turkey, South Korea, Malaysia, the Philippines and other countries.
5. We have senior engineers and technical researchers. Engineers are available to service overseas if needed !
