High Frequency Induction Heating Equipment for Metal Case Heat Treatment
1. Induction heating machine
- More reliable: the cabinet is well sealed, no failure all year, IGBT never burst.
- More Intelligent: Inverter power factor can reach 96%.
- More Intelligent: Control precision can reach 0.1%, all load can be automatically matching.
- Technical data
Power range 80-5000KW Frequency range 1-50KHZ Power Factor >0.96 Resonance Mode the secondary series resonance, parallel resonance, hybrid resonant Control precision 0.1% Power Adjustment Mode
Application field heat treatment(hardening, tempering, annealing, hardening& tempering), preheating, forging, melting, Induction evaporation, induction crystal growth, braze welding, forging, heating casting and so on. Working environment model choice guidance • Apply to the power supply voltage fluctuation is a big condition.
• Much products variety
• High-quality requirement
• Products require high consistency
2. CNC hardening machine tool
- Ø Vertical type universal machine tool: Φ10-Φ200,500-3000mm
- Ø Horizontal type universal machine tool: Φ50-Φ200,500-10000mm
- Ø Disk type universal machine tool: Φ50-Φ1000mm
CNC Hardening Machine tool Features:
Ø Running with high precision
Ø Control function is perfect, can use a single shaft, multiple shaft control systems.
Ø Can use together with the power supply power, meet the same part different power requirement.
Ø One-touch operation
Vertical type machine tool, horizontal type machine tool, disk type machine tool pictures:
3.Industrial Water Cooling Chiller
4. Induction heating machine Transformer parameters:
Capacity range: 300KVA--3000KVA
Frequency range: 0.1KHz--500KHz
Induction machine transformer features:
General Transformer----convenient operation, single turn ratio, need to adjust the induction coil to match the machine.
Multi-ratio Transformer----suitable for all kinds of induction coils, used for all kinds of occasion, just needs to adjust the turn ratio is ok.
Coaxial Transformer---energy concentration, small volume, but the turn ratio is single, better suitable for a fixed load.
5.Induction coil introduction
made by the customers' detailed technical requirements.
Ø Magnetic field distribution and design are precise, high efficient and energy-saving.
Ø Use with the magnetizer, easy to adjust the magnetic field intensity.
Ø Easy disassembly, exchangeability.
Ø Fastness and durability.
5.3.Induction coil applications:
Crankshaft induction coil, end-face induction coil, hub bearing induction coil, caterpillar track section hardening induction coil, inner hold induction coil, gear induction coil, shaft neck hardening induction coil, 3m inner hold hardening induction coil, crankshaft with the fillet induction coil.
5.4.Induction coil pictures:

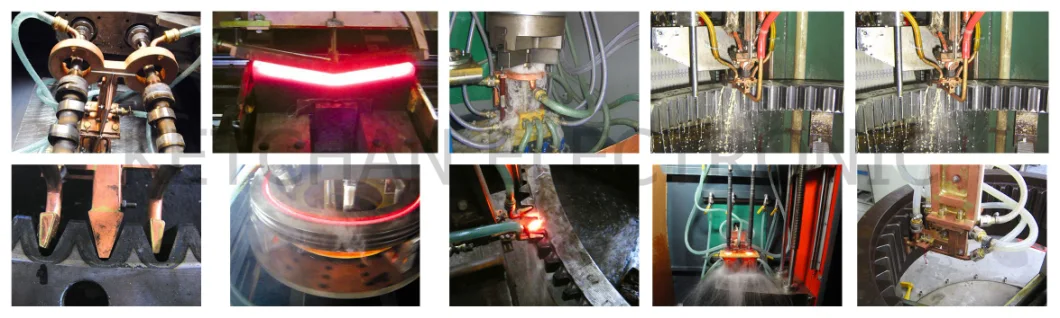

6.Induction heating machine application cases display
1. What is your advantage to choose Ketchan induction heater?
We have a special team for after-sale service 24*7. We will take the video of the machine's running before delivery for your confirmation. We have got CE certificate which meets the European standard. Ketchan takes quality as our culture.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us. Our engineer will judge which part is trouble, then provide the advice and accessories list you need. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirements.
3. what is your warranty?
Our all machines' standard warranty is 12 months from the date of signing the turning over the document after commission.
