Medium frequency induction heating power supply
I, Main Technology Parameters:
1. Model: HGZ80 maximum power 80KW, dual k-type thermocouple temperature measurement interface and 4-20ma infrared interface.
2. Main application: preheating before welding, heat treatment after welding, heating of anticorrosive coating, tube body heat preservation, etc. Environment temperature requirement: from- 45 degrees to 55 degrees
3. Total weight: about 150KG.
4. Dimensions: 600*700*800mm. (length * width * height)
5. Cable head connection: use the air plug as a quick plug connection, protection grade IP67.
6. Device IP level: IP23.
7. Electrical parameters: equipped with 80KW medium frequency air cooling induction heating power supply:
Rated input voltage: three-phase 380VAC, 50Hz/60Hz.
Rated input current: 133A (RMS)
Maximum output current: 500A (RMS)
Range of load inductance: 10.0-50.0uH (different inductance, the maximum output power of the equipment is different)
Provisional rate: 100%
Power factor: >0.90.
Resonant frequency: 8KHz (1-15khz automatic tracking, other frequency range needs to be reduced power)
Power equipment size (length * width * height) : 600*700*800mm. With casters.
Optional 6 temperature recorder, with remote control.
Intermediate frequency induction heating belt (belt type)
I, Main Technology Parameters
Heating workpiece: 8.625 inch pipe, 10.75 inch, 12 inch. 14 inch 16 inch 18 inch 20 inch 22 inch 24 inch (big size heating belt can be used to heat small size pipe)
Model: HGZD belt type sensor, heating workpiece 56 "specification, heating width 200-400mm, manual winding.
Main application: preheating, anticorrosion coating and pipeline thermal insulation, etc.
Environment temperature requirement: from- 45 degrees to 55 degrees. Heat resistance temperature 250 ºC

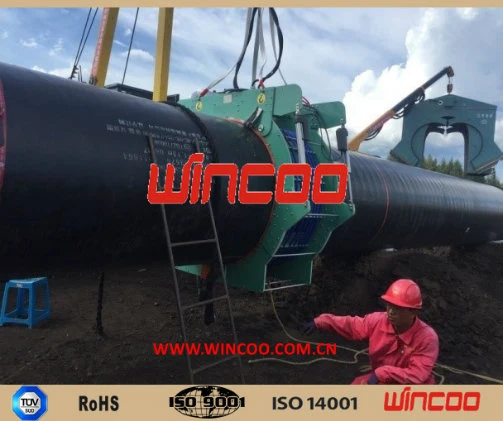

It is easy to operate the induction coil by winding the outer ring of the pipe.
Total weight: the weight is determined according to the size of the heating pipe and the power of the heating equipment.
Dimensions: determined according to the diameter of the heated pipe.
Main material: high frequency heating cable is used as the main material of the coil, the external package is resistant to the high temperature type of kevlar package, the insulation performance and temperature resistance are very good.
Open and close mode: manual package.
Connection mode of cable head: using aluminum hangers for connection, protection grade IP67. The whole sensor is waterproof and moisture-proof, suitable for outdoor use.
Extension cable connections are made of aluminum Air plug as quick plug connections, protection grade IP67.
Electrical parameters: equipped with 80KW medium frequency air cooled coil:
Model: HGZ80 rated output power: 80KW.
Rated input voltage: single-phase 800VAC, 0.5khz-20khz.
Rated input current: 300A (RMS) ~400A (RMS)
Provisional rate: 100%
Heating width: 220mm (customizable,)
Heating pipeline: customized.
Size (width) : 220mm.
