Low Price IGBT High Frequency Induction Heating Machine (JL-80)

Main Feature:
  1. It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
  2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
  3. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.
  4. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
  5. It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Technical Parameters:
Input power desire3 phase 380V  50/60HZ
Max oscillate power 80KW
Max input current105A
Oscillate frequency30-80KHZ
Cooling water desire>0.5MPa 6L/Min
Duty cycle100% 40°C
Dimensions(L*W*H)Generator: 750*460*870mm
Transformer: 950*450*500mm
Net weight80kg/85kg
Cable length2-6(Meters)

Spare Parts for JL-80KW
ItemName of machine or partsSpecification Amount
1JL-80KW Induction heater-1 pcs
2Foot pedal 3 core1 pcs
3Induction Coils-2 sets
4Water Cable-1 set
5Instruction Manual-1 pcs
6Product catalog-2 sets

Main Parts Introduction

  • Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
  • Japan Nichicon electrolytic capacitor. ( filter capacitor )
  • Imported transistor integrated block.
  • All water pipe use thermostabilityHigh pressure resistance best quality material.
  • Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
  • International advanced all-solid-state semiconductor power devices.
  • Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
  • Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

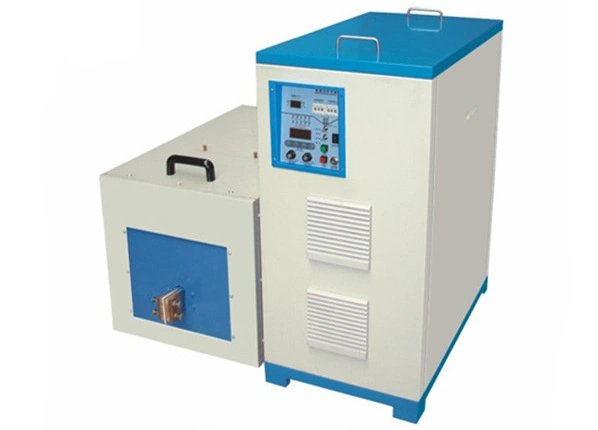

Photo of Machine
Low Price IGBT High Frequency Induction Heating Machine (JL-80)

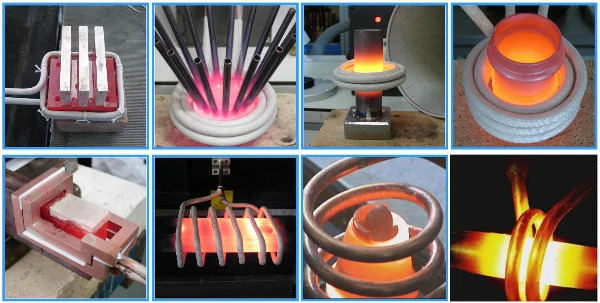

Applications: Forging, Heat treatment, Welding, Melting, etc.

1.Forging Molding
   M.F. forging furnace is used for the heating of bars and rods larger than Φ12, the material can be steel, stainless steel, copper, brass ,aluminium and so on.  The heating can be the whole rod, end of the rod or middle part of the rod.
   Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.
Low Price IGBT High Frequency Induction Heating Machine (JL-80)

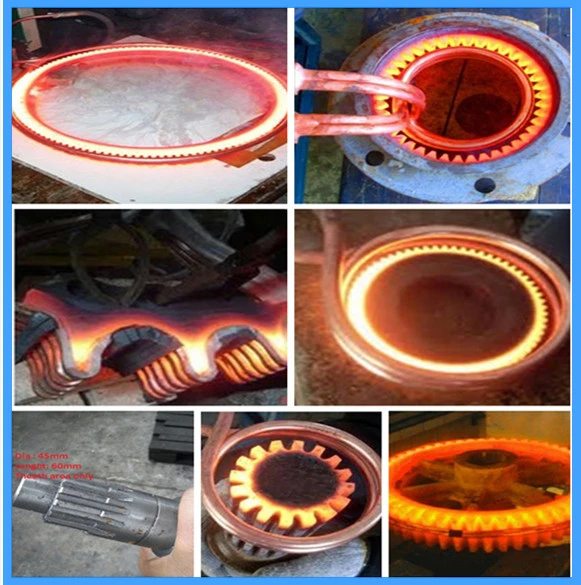

2.Heat treatment:such as Quenching, Annealing
    Heat treatment process is the metal work-pieces heated to a certain temperature, obtained different matrix organization after different ways of cooling, so that to achieve the required mechanical properties (material harder or softer), such as quenching, annealing, etc.
     Applications Examples: Shaft, Shaft core, Plate, Gear, Sprocket, Steel belt, Machine tool accessories, Guide rail, Hardware tools, Small mold, Mold accessories, CAM, Automobile and motorcycle accessories, Scissors, Garden shears blade, Chuck, mechanical parts, Stainless steel products, Cistern, Kitchen ware, Golf head, Clubs, Steel tube, Furniture fittings and Other related products.

Low Price IGBT High Frequency Induction Heating Machine (JL-80)

3.Brazing, Welding, Soldering
    Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material.
      (1). Any industry of add welding material connection.
      Such as: Cutting tools ( Turning, Milling cutter, Woodworking tools, Serrated blade, Shoe materials, Diamond tool, Deep hole drilling, Drilling etc.), Faucets, Bathroom accessories, Showers, Coal drill, Drill bit, Terminal blocks, Furniture fittings, Refrigeration equipment, Pad tube, Heating plate, Egg beater, Lighting accessories, Branch distributor, Bicycle up and down the fork iron, Copper pieces, Aluminum, Stainless steel.
 Do not add welding material connection.
      Such as: Computer radiator core and copper core, Motor rotor and shaft, Horn net preparetions, Hanger hook, Copier carbon brush melt, Aluminum-plastic pipe, Compound preparetions kettle, Tool shank cure, Tableware curing rubber handle, Battery pole ear forming, Aluminum foil sealing etc.

Low Price IGBT High Frequency Induction Heating Machine (JL-80)

Low Price IGBT High Frequency Induction Heating Machine (JL-80)

Company information:
      Dongguan Jinlai Electromechanical Device Co.,Ltd., founded in 1996, which is engaged in R&D,
production andsale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.

Low Price IGBT High Frequency Induction Heating Machine (JL-80)

Our Services:

1. Pre-sale service:

  • Recommend the most suitable machine for customers, according to their requirements.
  • Inquiry and consulting support.
  • Sample testing support.
  • View our Factory.

2. In-sale service:

  • Strictly manufacture the machine, according to relevant technical standards.
  • Take run test, according to relevant equipment test run regulations.
  • Strictly check up the machine, before delivery
  • Delivery on time.

3. After-sale service:

  • 12 months warranty period
  • Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
  • If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
  • Technician to provide visiting service after checking with the customer and charge for a favorable price.
  • Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
  • The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

China Supplies Induction Heating Power Supply
Questions and Answers:

1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.

2.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3.How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.

4. Which export port you use?
Any China port, commonly we will use Shenzhen ,Guangzhou ,Hongkong port, it can appoint as you like.

5.How about the payment terms and delivery time ?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit,70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days,we will delivery goods on time.

6.If I have paid but can not receive the goods, how should I do?
Alibaba international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.

7.Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has ISO and CE certificate. All machines are high quality goods.

8.What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.


High Frequency Series JL (30-100KHZ)

Input power desireSingle phase 220V  50/60HZ3 phase 380V 50/60HZ
Oscillate power max5KW15KW25KW30KW40KW50KW60KW80KW
Max input current20A37A24A38A48A65A80A105A
Oscillate frequency100-250KHZ30-100KHZ30-100KHZ30-100KHZ30-100KHZ30-100KHZ30-100KHZ30-80KHZ
Cooling water desire>0.2MPa  2-6L/Min0.3Mpa≥6L/MIN
Duty cycle80% 40°C80% 40°C100% 40°C100% 40°C100% 40°C100% 40°C100% 40°C100% 40°C
Net weight19kg21kg28kg25kg/23kg35kg/30kg45kg/30kg50kg/30kg80kg/85kg
Cable length2-6(Meters)
