Control cabinet:
Melting furnace:
KGPS medium induction melting furnace features:
1. Fast melting speed.
2. Melting molten steel quality, casting yield is high.
3. High power factor. During machine operation, power factor up to 97%.
4. Strong antijamming ability, high frequency stability.
5. Low power consumption, saving more than 10%.
6.100% success start rate.
7. The main control board adopt connector interface, so it is more convenient to maintenance.
8. Series thyistor inverter adopted, making the SCR damage rate to a minimum.
Technical parameters of induction melting furnace:
| Model | Technical Parameters | |
| KGPS-250 | Rated power | 250KW |
| Working voltage | 380V, 50~60Hz | |
| MF frequency | 2000HZ | |
| MF voltage | 750V | |
| DC voltage | 500V | |
| DC current | 500A | |
| Rated melting capacity | 0.35T | |
| Rated temperature | 1600ºC | |
| Melting time | about 20-45 min per batch | |
| Closed cooling tower | LNB-20T/h | |
| Machine weight | 1.28T | |
| Power control cabinet dimension(L*W*H) | 1580*950*2000mm | |
| Furnace dimension(L*W*H) | 1250*900*900mm | |
The list item for whole set machine:
| Item No. | Name of machine or parts | Specification | Quantity |
| 1 | Power control cabinet | - | 1 set |
| 2 | Furnace body | - | 1 or 2 sets |
| 3 | Reducer box | RZS431 | 1 set |
| 4 | Water cooling cable | 240mm² | 2pcs |
| 5 | Model of crucible | - | 1 pcs |
| 6 | User manual | - | 1 copy |

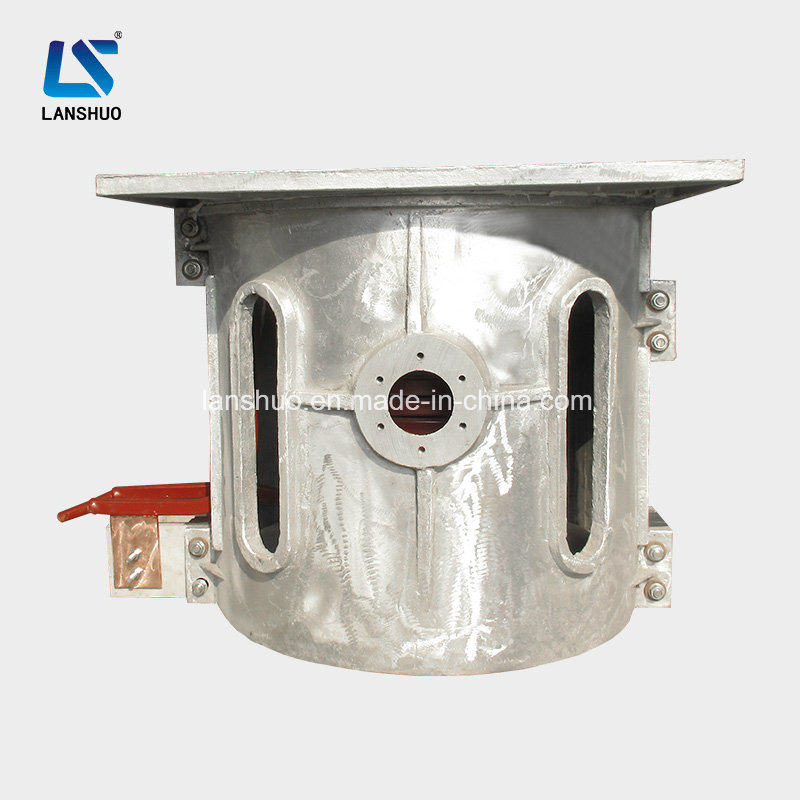

Furnace structure features:
• The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.
• The thick T2 standard copper tube is taken use for induction coil to provides high melting efficiency.
• Open type furnace hearth reduces moisture,and design cooling rings on the bottom, which extend the furnace lining life time.
• The titling is controlled by reducer gear box. The remote control panel can set the furnace in any position when titling. The max tilting angle is 95 degrees.
Installation Drawing:
Application
Medium frequency induction melting furnaces are mainly used for melting iron, steel, stainless steel, copper, brass, silver, gold, platinum, tin and aluminum materials, etc.
Packing&Delivery
Packaging: Induction melting furnace wrapped with plastic films and foam first, then put it into a standard export wooden case and fasten at last. (Can be customized if needed. )
Delivery: Within 7 working days after receiving your payment.
