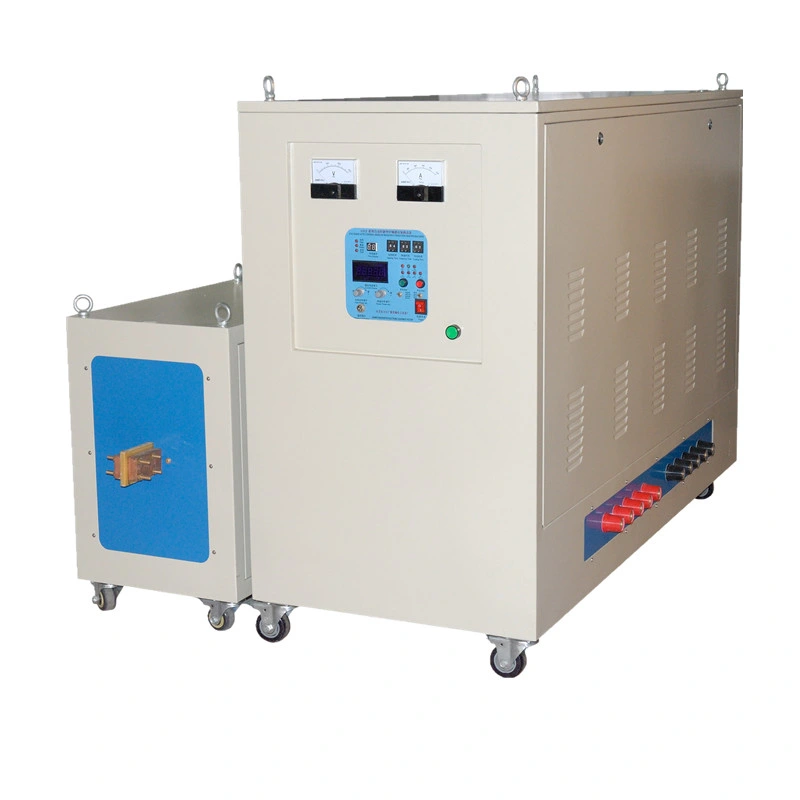

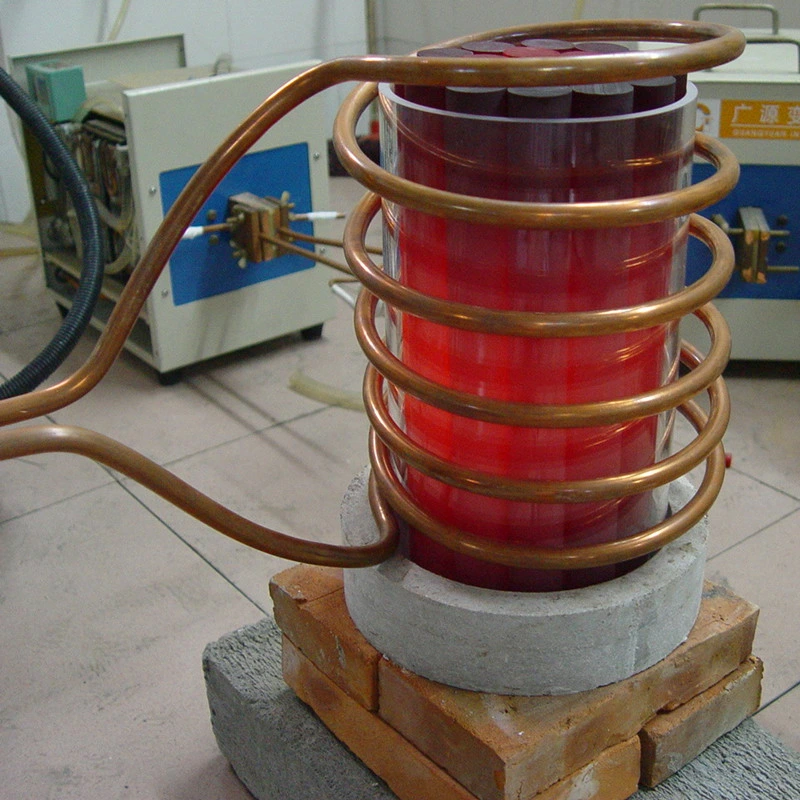

200kw IGBT Induction Heating Equipment For Graphite Rod Heating
Major Features:
- This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
- It has such feaures as high power, fast heating speed, high efficiency and easy operation.
- As compared with other heating modes, it can significantly promote the economic benefits, improve the
quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.
- It has super small size, which can save the production space by 10 times.
- It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the
safe operation.
- The comprehensive full load design is available for 24-hour continuous operation.
Application of Induction Heater:
A. Heating (hot forging, hot fitting and melting):
B. Heat Treatment (surface quench)
C. Welding (braze welding, silver soldering and brazing)
D. Annealing (tempering and modulation)
Parameter:
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Extra accessories accept choose,
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
About service question:
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.
Q:How to choose suitable machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
Major Features:
- This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
- It has such feaures as high power, fast heating speed, high efficiency and easy operation.
- As compared with other heating modes, it can significantly promote the economic benefits, improve the
quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.
- It has super small size, which can save the production space by 10 times.
- It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the
safe operation.
- The comprehensive full load design is available for 24-hour continuous operation.
Application of Induction Heater:
A. Heating (hot forging, hot fitting and melting):
B. Heat Treatment (surface quench)
C. Welding (braze welding, silver soldering and brazing)
D. Annealing (tempering and modulation)
Parameter:
| Model | GYS-200AB (Three phase) |
| Work power | 220V-520V |
| Maximum input current | 300A |
| Output power | 200KW |
| Fluctuating frequency | 10-50KHZ |
| Output current | 400-7500A |
| The flow rate of cooling water | 0.08-0.16Mpa 20L/Min |
| Water temperature protection point | 50C |
| Product size | main : 1450x700x1220mm |
| transformer : 1210x500x850mm | |
| Net weight | main : 150kgs |
| transformer : 95kgs |
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Extra accessories accept choose,
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
About service question:
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.
Q:How to choose suitable machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
